Typical wavelength range
250 – 3000 nm
Available dimension range
5 – 200 mm
Shape
Round, rectangular, elliptical
Clear aperture
>90%*
Surface quality, S-D
10-5**
Surface flatness, P-V
<λ/8 @ 632.8 nm**
Reflectance
>99.98%, >99.95%
LIDT
>17 J/cm² @ 1064 nm, 10 ns, 10 Hz
*100% CA available on request
**depending on the size of the element

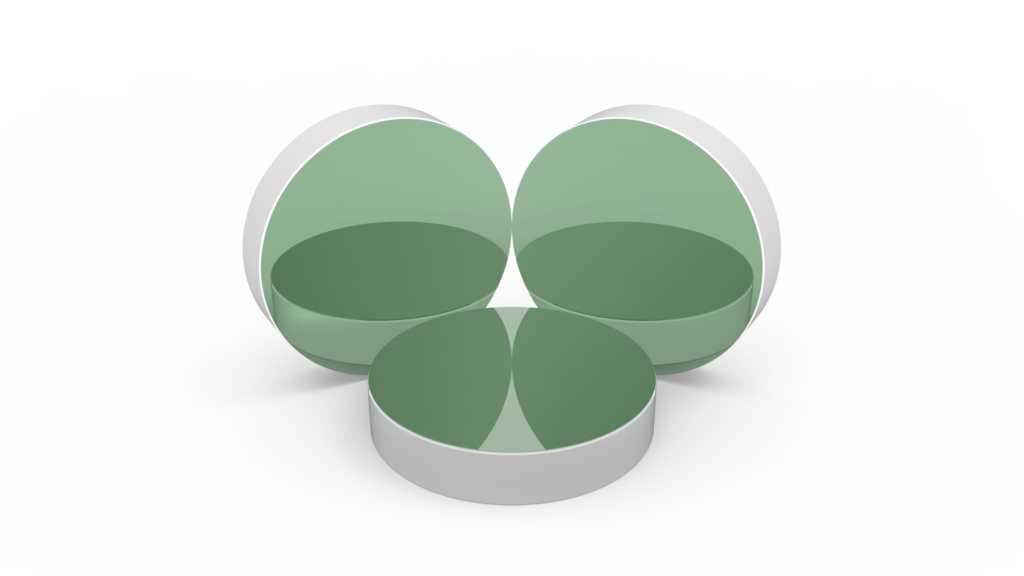

Low Loss HR mirrors are essential in laser systems where the lowest possible losses are required.
Mirrors are manufactured using advanced sputtering technologies. Low Loss HR mirrors provide maximum reflection in a certain wavelength range and angle of incidence (AOI). Wide-angle (AOI 0-50°) mirrors are also available.
Ion beam sputtering (IBS) coatings are distinguished from other coating technologies by the possibility of reaching extremely high-quality specifications. IBS thin films feature higher density and durability compared to evaporated ones, making them resistant to environmental conditions such as heat, humidity and pressure. They also allow scattering to be minimized in dielectric layers which is usually a limiting factor for achieving high reflectivity.
Features
Feel free to reach out to us for more information or any inquiries you may have at: [email protected]. We’re here to assist you!
| Substrate material | Dimensions, mm | Reflectance, % | Wavelength, nm | Product ID for AOI=0° |
|---|---|---|---|---|
| UVFS | Ø25.4x5 | >99.9 | 343-355 | 1-OS-2-0254-5-[1B00-IBS] |
| 515-532 | 1-OS-2-0254-5-[1F00-IBS] | |||
| UVFS | Ø25.4x5 | >99.95 | 1030-1064 | 1-OS-2-0254-5-[1PR00-IBS] |
| Reflectance s/p, % | Product ID for AOI=45° |
|||
| UVFS | Ø25.4x5 | >99.9/>99.7 | 343-355 | 1-OS-2-0254-5-[1B45-IBS] |
| >99.97/>99.93 | 515-532 | 1-OS-2-0254-5-[1F45-IBS] | ||
| >99.98/>99.93 | 1030-1064 | 1-OS-2-0254-5-[1PR45-IBS] |
