Nd:YVO4 Crystals

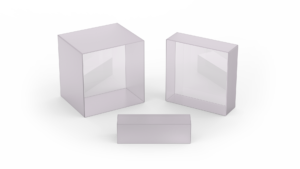

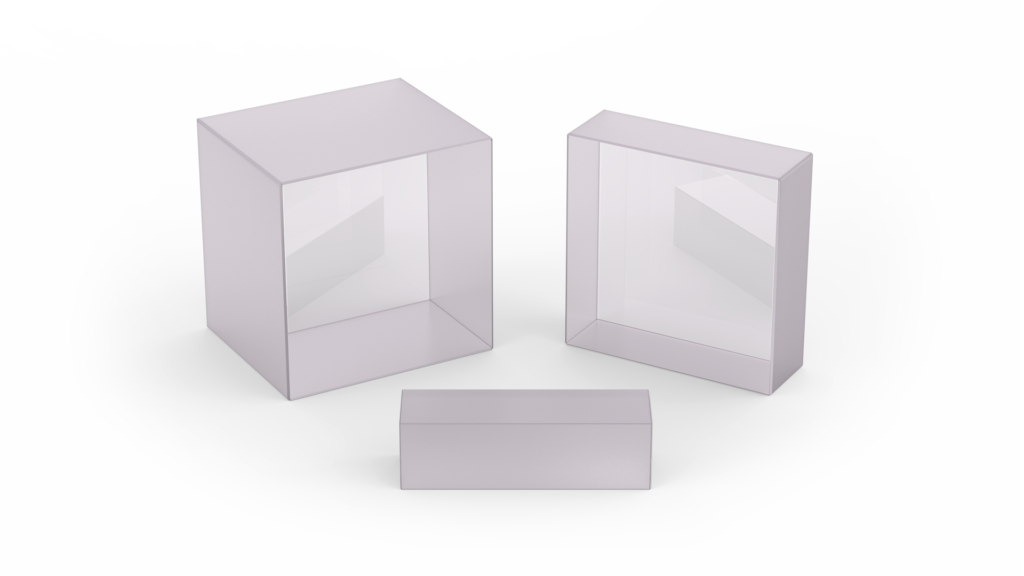

Three Nd:YVO4 laser crystals of different shapes in transparent pink color

Nd:YVO4 Crystals

Doping concentration

0.5-3 atm.%

Aperture dimensions

1×1 – 15×15 mm

Crystal orientation

a-cut

Surface quality, S-D

10-5

Surface flatness, P-V

<λ/10 @ 632.8 nm

Coatings

Contact us

Are you interested?
Don’t hesitate and fill request form.

Fill request form

Neodymium-doped yttrium vanadate – Laser crystal

Neodymium-doped yttrium vanadate (Nd:YVO4) is one of the best commercially available diode-pumped solid-state laser materials. It has a high laser-induced damage threshold, with good mechanical and optical properties. Its large stimulated emission cross-section and high absorption of pump laser make it an effective crystal for compact lasers.

A broad absorption band centered at 808 nm and favorable mechanical properties make Nd:YVO4 well-suited for compact, efficient, high power diode-pumped lasers.

The natural birefringence of vanadate crystals provides a highly polarized output at 1064 and 1342 nm. Nd:YVO4 is a go-to choice for a 1342 nm, as the emission line is much stronger than those of alternatives.



Contact us for more information: [email protected]


MEASURED LIDT VALUES
