Substrate material
UVFS
Wavelength range
343 – 2100 nm
Surface quality, S-D
40-20, 20-10*
Reflected and transmitted wavefront distortion, P-V
<λ/8 @ 632.8 nm
Beam deviation
<3 arcmin
Extinction ratio Tp/Ts
>1000:1
Transmission @ central wavelength
Tp>97%
Reflectance @ central wavelength
Rs>99.5%
LIDT
Up to 20 J/cm2 @ 1064 nm, 10 ns, 100 Hz**
*depending on size
**higher values possible

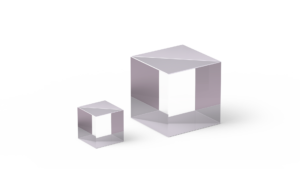

Polarizing beamsplitter cubes offer several advantages over plate beamsplitters. They are easy to handle, high contrast and high-extinction-ratio polarizers that split a randomly polarized beam into two orthogonal, linearly polarized components.
These products are typically used in laser-beam separation and combination, and optical-isolation applications. The epoxy-free construction of the cubes enables superior performance at high energy levels.
Features:
Contact us for more information: [email protected]
| Product ID | Wavelength, nm | Dimensions, mm | Reflection s-pol, % | Transmission p-pol, % |
|---|---|---|---|---|
| 2-HPCB-A-0125 | 345-365 (centered @ 355) | 12.7x12.7x12.7 | >99.5 | >96 |
| 2-HPCB-A-0254 | 25.4x25.4x25.4 | |||
| 2-HPCB-B-0125 | 510-550 (centered @ 532) | 12.7x12.7x12.7 | >99.5 | >97 |
| 2-HPCB-B-0254 | 25.4x25.4x25.4 | |||

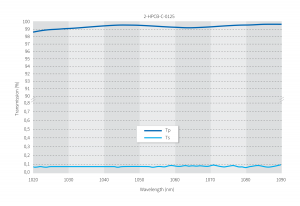

| 2-HPCB-C-0125 | 1020-1090 (centered @ 1064) | 12.7x12.7x12.7 | >99.5 | >97 |
| 2-HPCB-C-0254 | 25.4x25.4x25.4 | |||

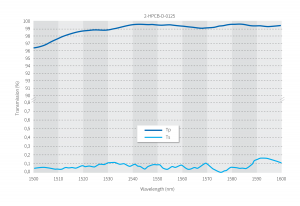

| 2-HPCB-D-0125 | 1510-1580 (centered @ 1550) | 12.7x12.7x12.7 | >99.5 | >97 |
