Semicon

Photonics technologies are fundamental to semiconductor manufacturing, enabling processes that achieve nanometer-scale precision and high throughput.

From wafer inspection to lithography and laser-based material processing, optical systems ensure accuracy, speed, and reliability in environments where even microscopic defects can impact device performance.

Altechna supplies high‑performance optical components and assemblies that deliver exceptional stability, durability, and beam integrity, supporting reliable operation in the demanding conditions of semiconductor fabrication.

Engineered for semiconductor industry systems

Photolithography Systems

Photolithography uses light to transfer circuit patterns onto semiconductor wafers, enabling the creation of integrated circuits with extreme precision. These systems typically operate in the deep ultraviolet (DUV) range at 193 nm or 248 nm, and in advanced nodes. Critical optical components include projection lenses, beam splitters, and high-reflectivity mirrors with coatings optimized for UV wavelengths and minimal distortion.

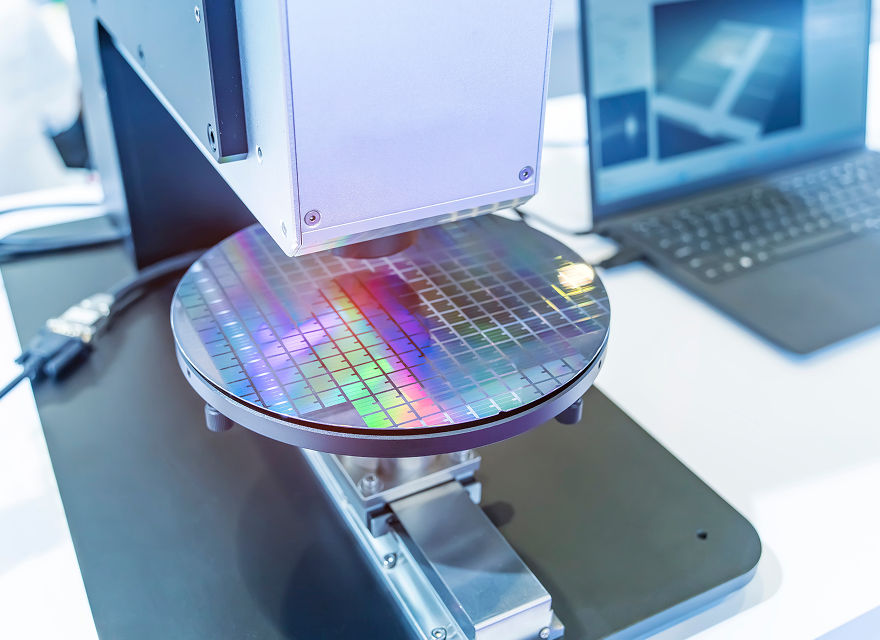

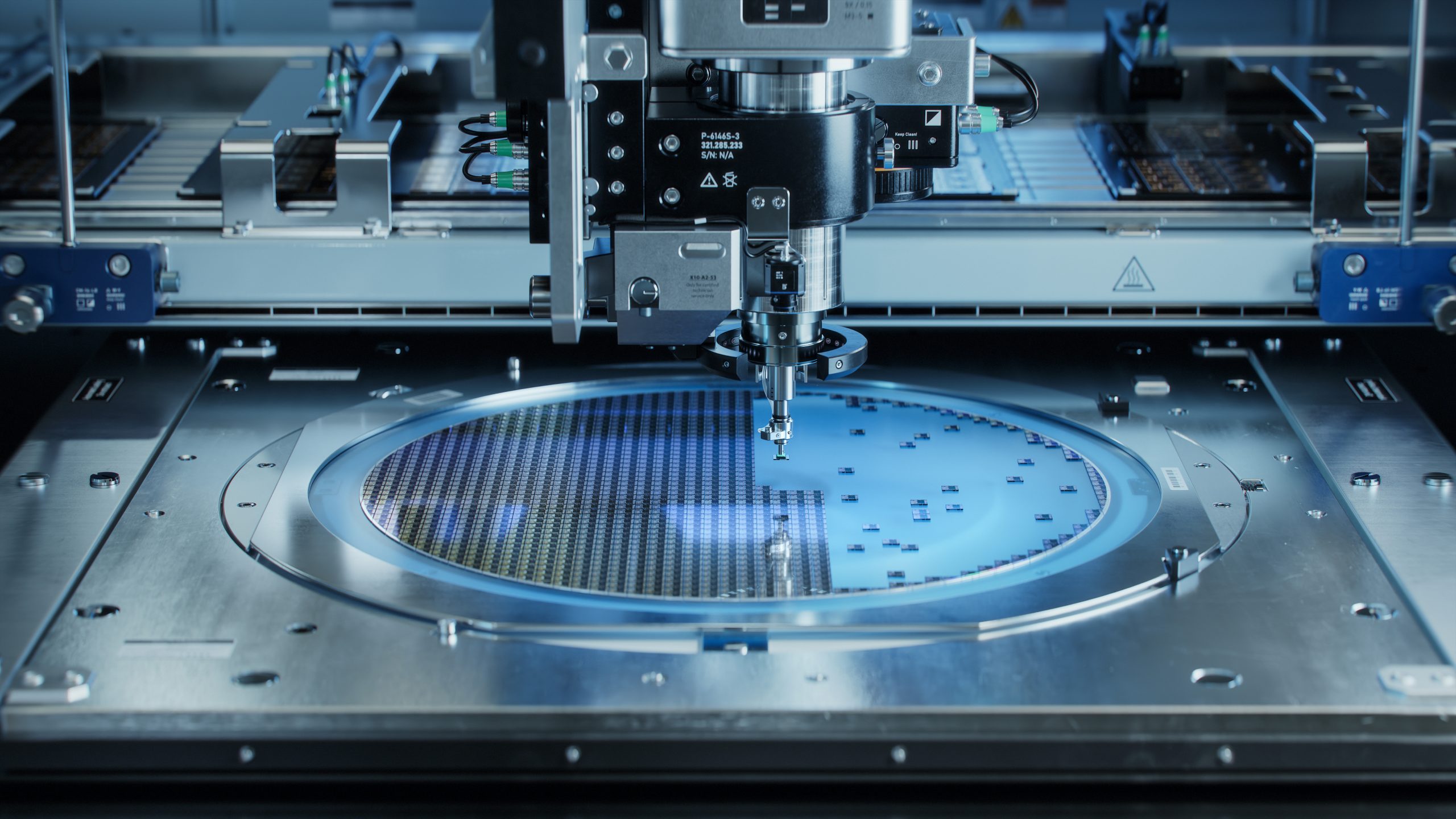

Wafer Inspection and Metrology

Inspection and metrology systems ensure defect-free wafers and accurate layer alignment, using optical techniques for non-contact measurement. Common wavelengths include visible and near-infrared ranges (400–1064 nm) for imaging and interferometry. Essential optics include precision lenses, beam splitters, and filters that deliver high resolution, low scattering, and stable alignment for nanometer-scale measurements.

Laser Dicing and Micromachining

Laser dicing and micromachining are used for precise cutting and structuring of brittle materials such as semiconductors, ceramics, and glass, offering superior accuracy and reduced mechanical stress compared to conventional sawing or milling. These systems typically operate at UV wavelengths (e.g., 355 nm) or near-infrared (1.03–1.07 µm), with ultrashort pulses (femtosecond and picosecond) enabling cold ablation and minimal heat-affected zones. Critical optical components include high-precision focusing lenses, beam shaping optics, and scanning mirrors designed for exceptional accuracy and durability under high repetition rates.

Critical performance criteria

Our solution tailored for semiconductor industry application

Reflective optics for 248-266 nm range

Spectral performance

R>99% (Rs>99.4%, Rp>98.5%) AOI 45 deg.

Wavefront distortion

<L/10 @ 633 nm

Surface quality (S-D)

20-10

LIDT

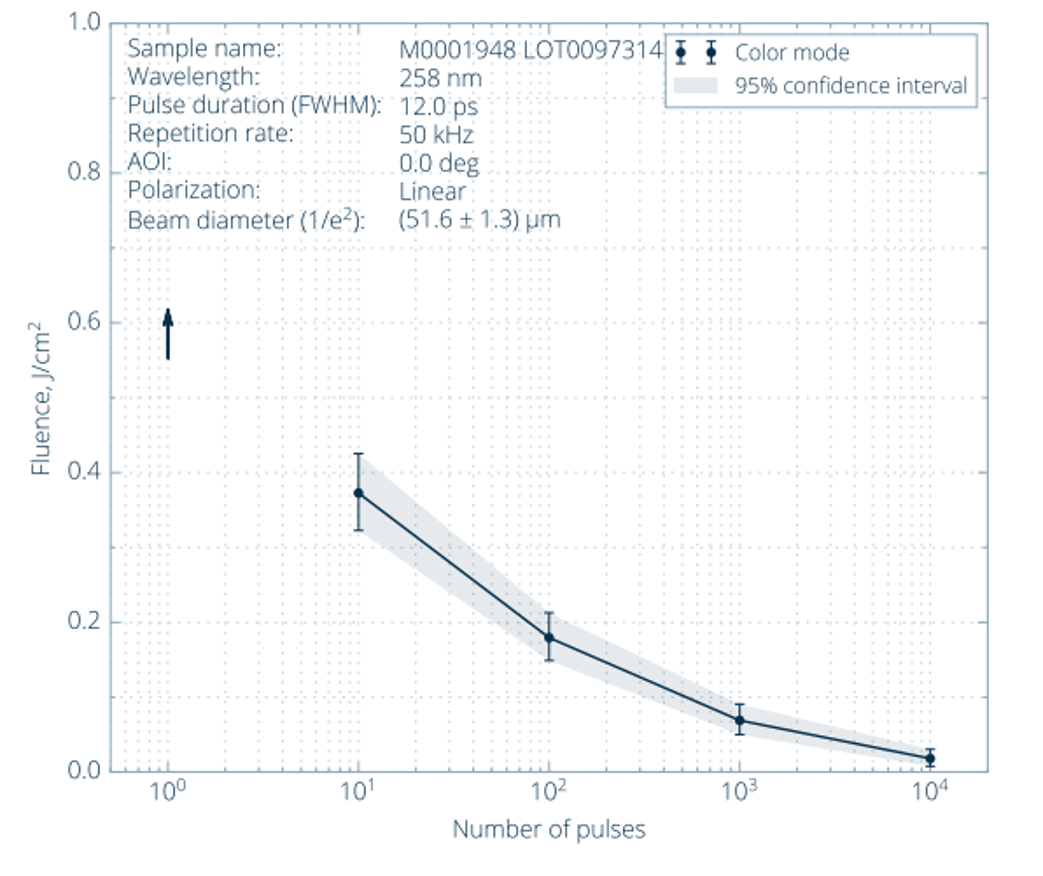

0.26 J/cm² @258, 12 ps, 50 kHz, 100k-on-1

Application feedback

Survived >500k shots with 8 J/cm², 5 ns

Survived >300 h with 1 W averge power at sub-ps pulse duration and high-rep rates.

Transmissive optics for 248-266 nm range

Spectral performance

R<0.1%, T>99.5%

Wavefront distortion

<L/10 @ 633 nm

Surface quality (S-D)

20-10

LIDT

>0.56 J/cm² @258 nm, 12 ps, 50 kHz, 10k-on-1 (undamaged under max testing fluence)

4.2 J/cm² @266 nm, 5 ns, 100 Hz, 1000-on-1

Beam delivery for DUV (193 nm) range

Spectral performance

R<0.25%, T>99% for transmissive optics

Rs>98.8%, Rp>96%, R>98% for reflective optics

Wavefront distortion

<L/10 @ 633 nm

Surface quality (S-D)

20-10

Variable Beam Expander for high-power UV (343-355 nm) application

Wavefront distortion

<L/10 @633 nm

Expansion ratio

1-4X

Pointing stability

<1 mrad

Overall transmission

>97%

More than 3 months 24/7 use

in 343 nm, 1 MHz, 500 fs laser system

Beam delivery for UV (343-355 nm) range

Spectral performance

Mirrors R>99.8% (Rs>99.9%, Rp>99.7%) AOI 45 deg.

Polarizers Rs>99.7%, Tp>97% AOI Brewster

Lenses/windows R<0.1% AOI 0 deg.

Wavefront distortion

<L/10 @633 nm

Surface quality (S-D)

10-5

LIDT (Mirrors)

7.7 J/cm² @355 nm, 10 ns, 100 Hz, 1000-on-1

0.383 J/cm² @343 nm, 1 ps, 200 kHz, 10M-on-1

LIDT (windows/lenses)

7.7 J/cm² @355 nm, 10 ns, 100 Hz, 1000-on-1

0.473 J/cm² @343, 1 ps, 500 kHz, 10M-on-1
